Smart Vent to EVOAQ Upgrade Kit

Price range: $1,426.00 through $1,656.00

- +
SKU: R-AQ-SMV-KIT Categories: , Tags: , , , , , , , , , Brand:

EVOAQ Fully compatible Smart Vent Replacement/Upgrade Kit

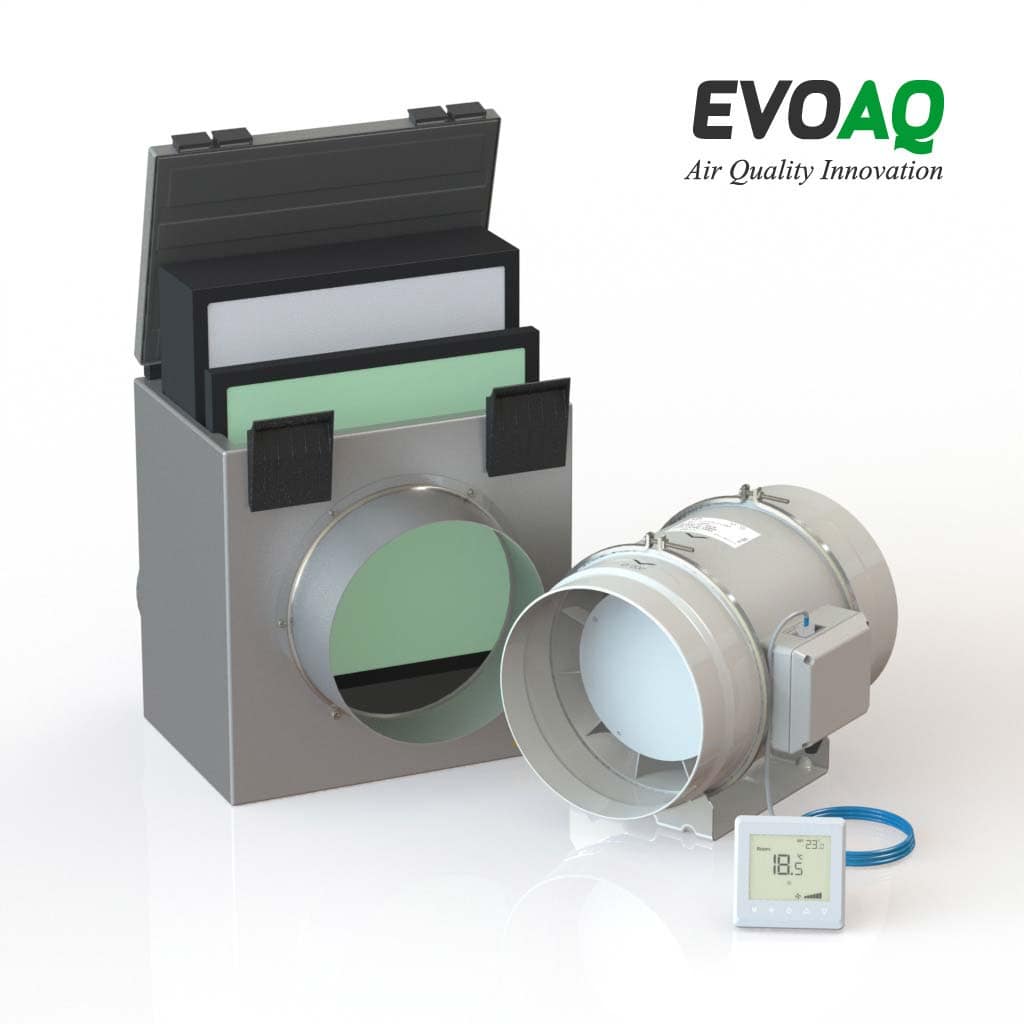

If you need a new ventilation system “engine” but already have an existing Smart Vent system in place, consider keeping the ducting and outlets but replacing the fan, controller, and filter with our EVOAQ Ventilation system.

As different systems require different components to connect it all together, please select what existing system you are connecting to:

Smart Vent Part Number

  • SV01 or equivalent: 1 room/outlet
  • SV02 or equivalent: 2-3 rooms/outlets
  • SV04 or equivalent: 4-6 rooms/outlets with 1 fan
  • SV06 or equivalent: 6+ rooms/outlets with 2 fans



Duct Size

150mm, 200mm

External Grille

None

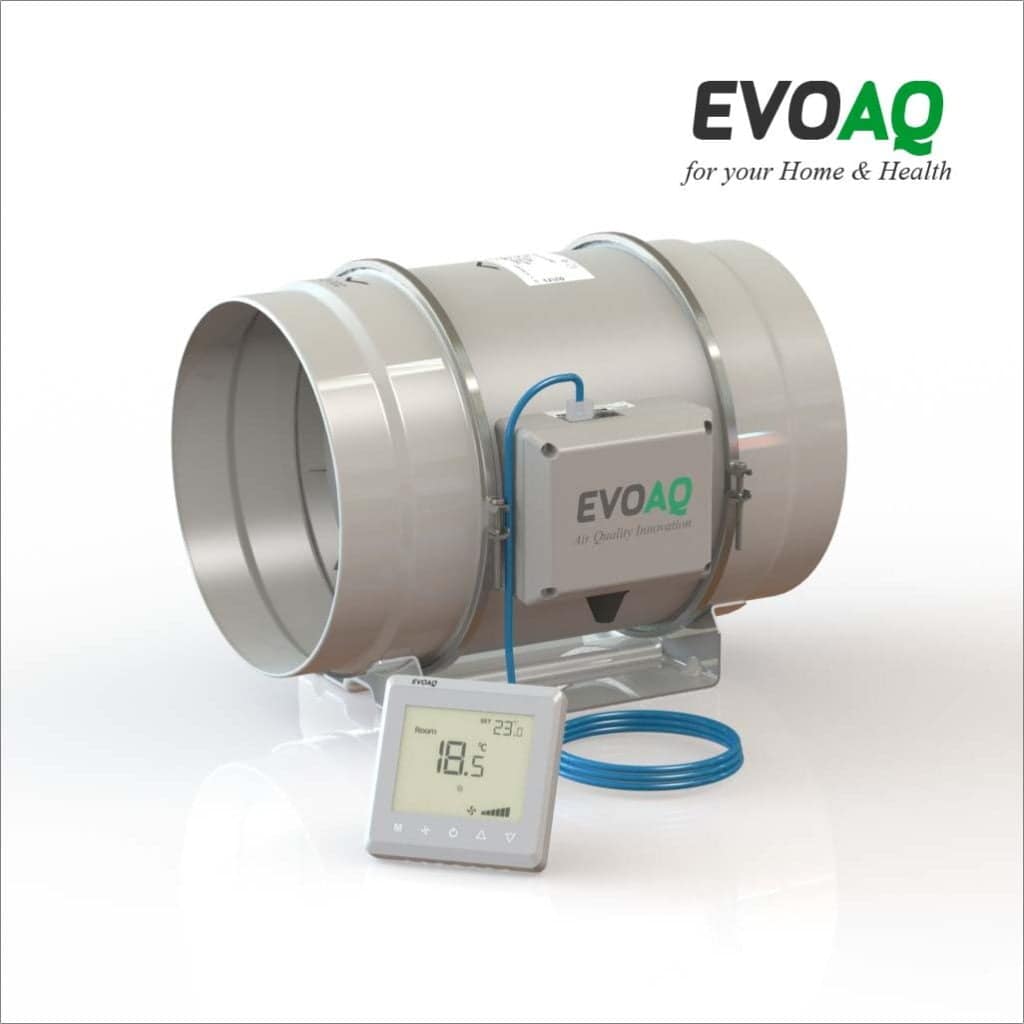

Fan Motor TypeEC Motor 230VAC Electronically Commutated (EC) fan motor, with 10-100% variable speed controllability
Fan Type

Inline Fan

Filter typeF7 FilterPM2.5 (F7 equivalent) filter, HEPA Filter HEPA Filter Screen
G4 ComplianceCompliant with G4 Building code This system is compliant with G4 Building Code ventilation requirements (as per NZS 4303:1990). This means ventilation systems are capable of delivering at least 7.5L/s per person of fresh air to living spaces; bathroom/laundry fans can provide at least 10L/s continuous and/or 25L/s intermittent extraction; and kitchen fans can provide at least 12L/s continuous and/or 50L/s intermittent extraction.
Internal Grille Size150mm cone diffuser 150mm Duct connection size. Face size is 200mm diameter.
Sensor Type

Humidity, Temperature

Speed ControlsAir Quality MonitoringAir Quality Monitoring is EVOAQ's proprietary sensor software controls, with humidity and temperature sensor control technology designed for NZ homes, Wall Controller Systems with a wall controller allow for user adjustment of the system operation via wall-mounted thermostat control.
