Automatic Mixed-Flow Bathroom Kit (150mm)

$529.00

External Grille *
Louvre Grille
Cowl (ABS)
Cowl (Stainless Steel)

White ABS plastic louvre grille.
Suitable for installation in soffits.

White ABS plastic cowl.
Suitable for installation in walls and roof gable ends.

Stainless steel cowl. Can be painted or left as metal colour.
Suitable for installation in walls and roof gable ends.

Paint cowl?

Check the above option if you would like us to spray paint your cowl to match your house's cladding colour.

Colour (Dulux colours preferred) *
Add-Ons
Total price:$529.00
- +

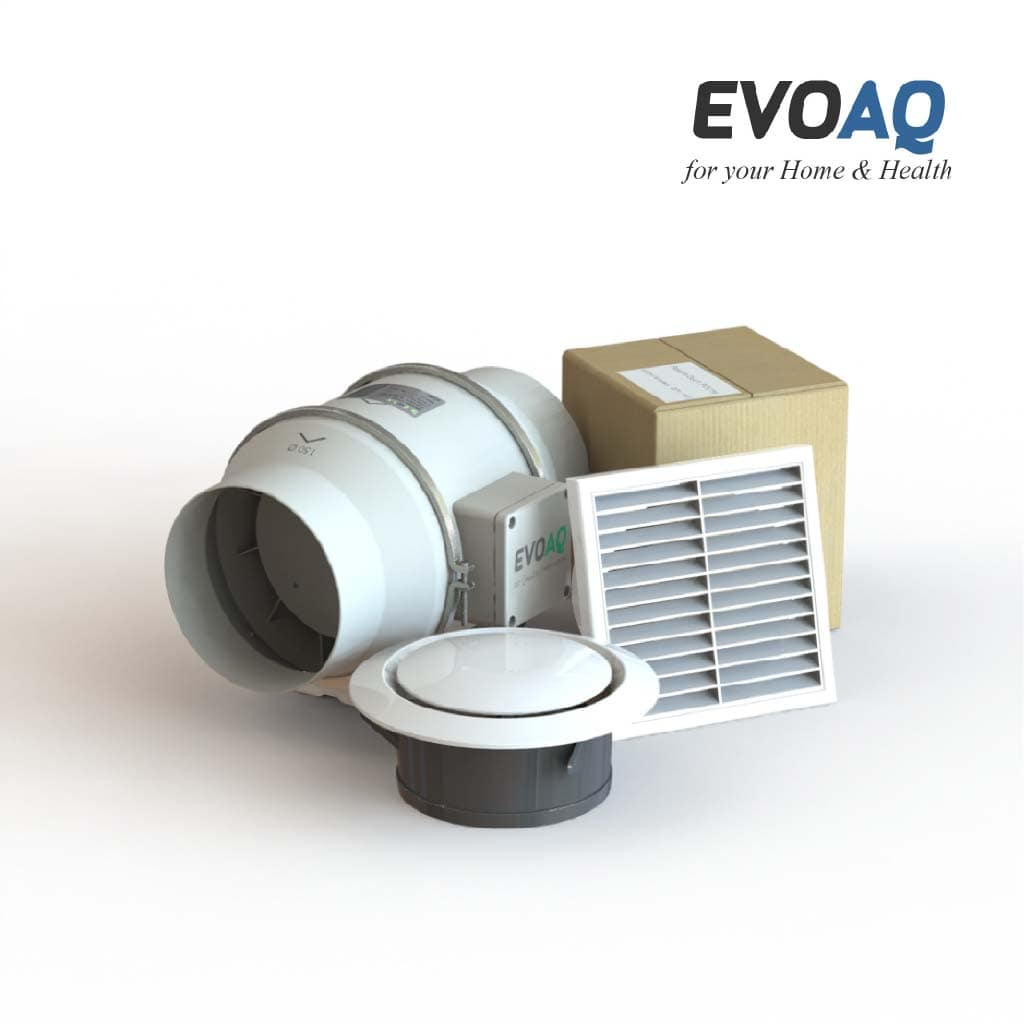

EVOAQ 150mm EC Mixed Flow Extraction Kit (Environmental Control)

The fan in this kit is designed to adjust its speed automatically through built-in sensors and controls. It is suitable in as a direct replacement of existing bathroom or toilet extraction fans, but please keep in mind that it requires to be permanently powered. This product includes the full extraction kit.

If you would like to be able to also manually boost the fan speed, please make sure to select the Boost switch option. Want to boost your fan when your lights are on, or do you have a PIR sensor in your bathroom? Consider also adding our EVOAQ 230VAC isolation switch, which allows the fan to be boosted with mains voltage input.

Duct Size

150mm

External Grille Size150mm 150mm duct connection
Fan Motor TypeEC Motor 230VAC Electronically Commutated (EC) fan motor, with 10-100% variable speed controllability
Fan Size150mm Fan with 150mm diameter duct connection
Fan Type

Inline Fan

G4 ComplianceCompliant with G4 Building code This system is compliant with G4 Building Code ventilation requirements (as per NZS 4303:1990). This means ventilation systems are capable of delivering at least 7.5L/s per person of fresh air to living spaces; bathroom/laundry fans can provide at least 10L/s continuous and/or 25L/s intermittent extraction; and kitchen fans can provide at least 12L/s continuous and/or 50L/s intermittent extraction.
Healthy Homes ComplianceCompliant with the NZ Healthy Homes Standards This system is compliant with the New Zealand Healthy Homes Standards. This means that for kitchens, the system has an exhaust capacity of at least 12L/s (continuous) and/or 50L/s (intermittent extraction). And for bathrooms, the system has an exhaust capacity of at least 10L/s (continuous) and/or 25L/s (intermittent extraction).
Internal Grille Size150mm cone diffuser 150mm Duct connection size. Face size is 200mm diameter.
Internal Grille

Diffuser

Sensor Type

Humidity, Temperature

Speed ControlsAir Quality Monitoring Air Quality Monitoring is EVOAQ's proprietary sensor software controls, with humidity and temperature sensor control technology designed for NZ homes
