EVOAQ Mini House Ventilation

Price range: $747.50 through $977.50

- +

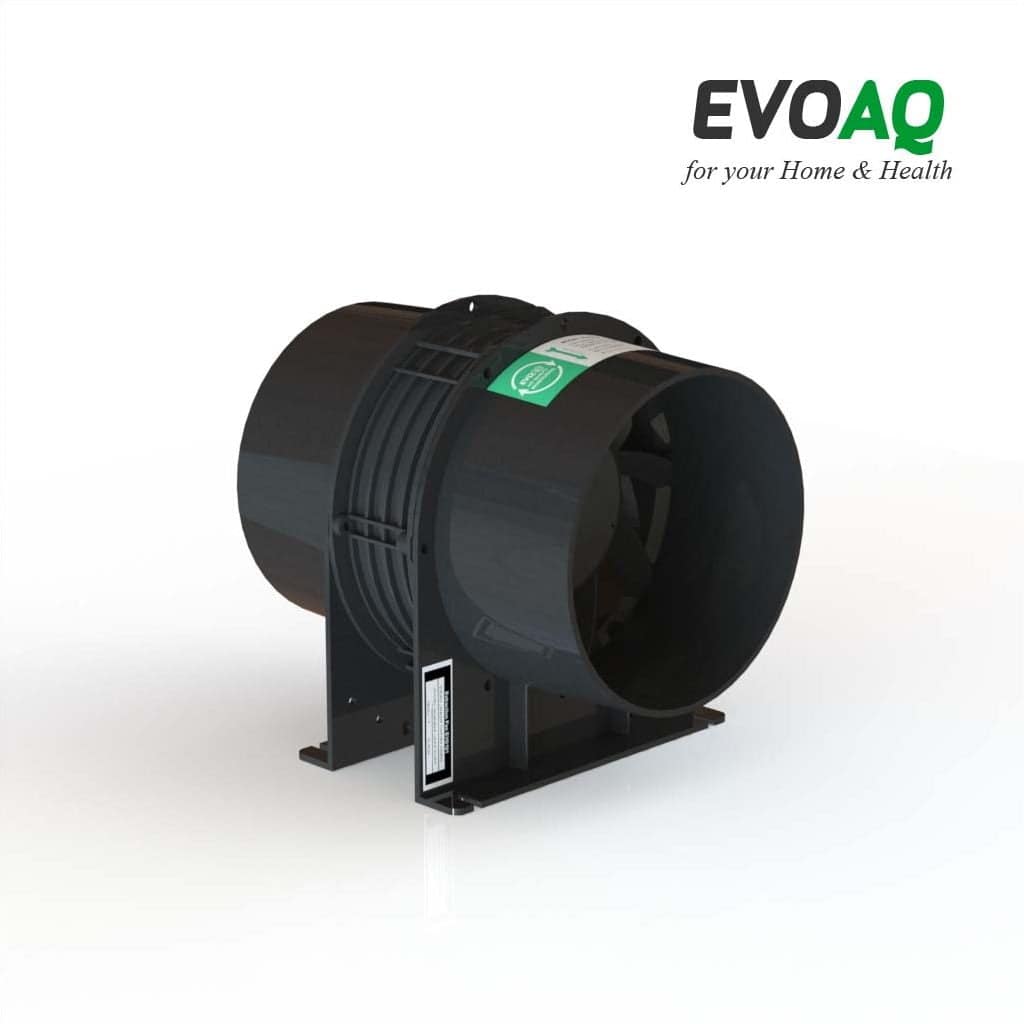

EVOAQ Mini House Ventilation System (150mm axial fan, no filter-outside air, no controller)

Please select the number of outlets you require. For this particular system, this includes hallways and lounges.

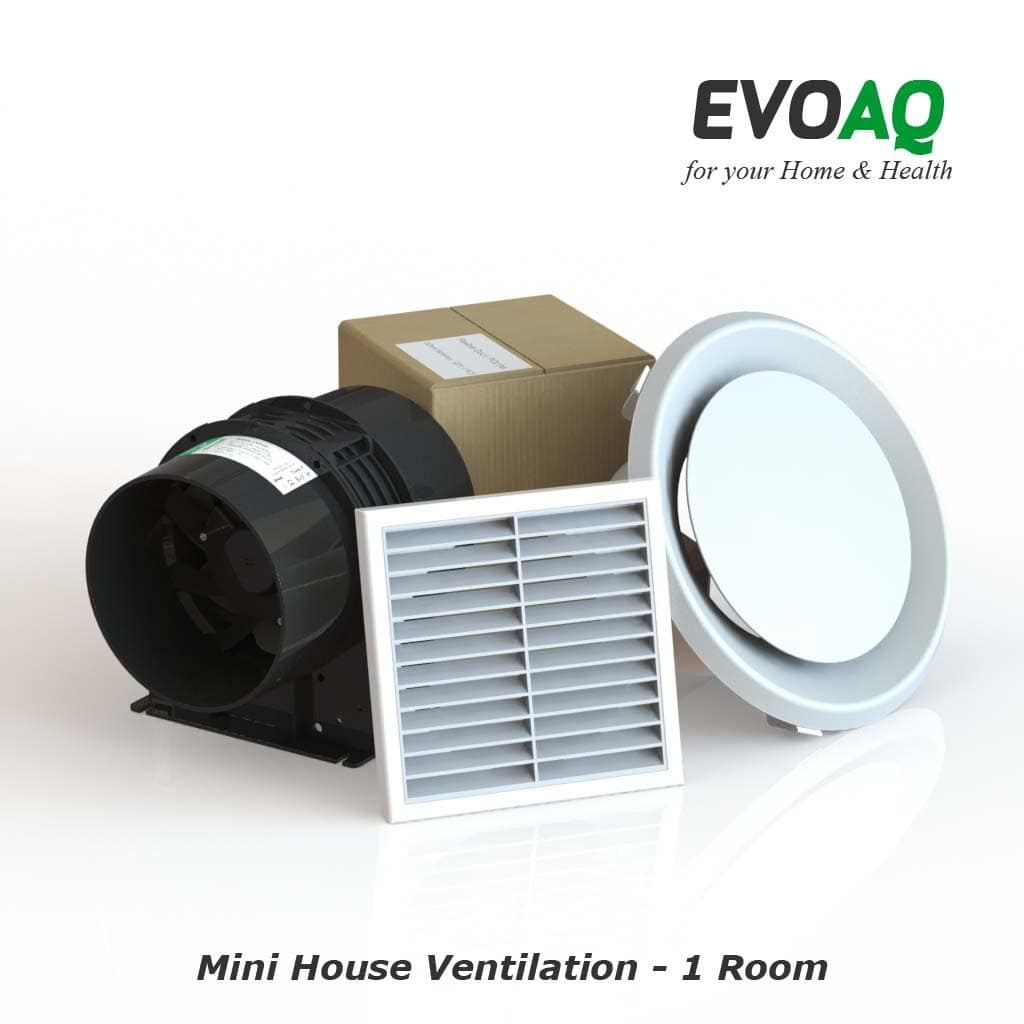

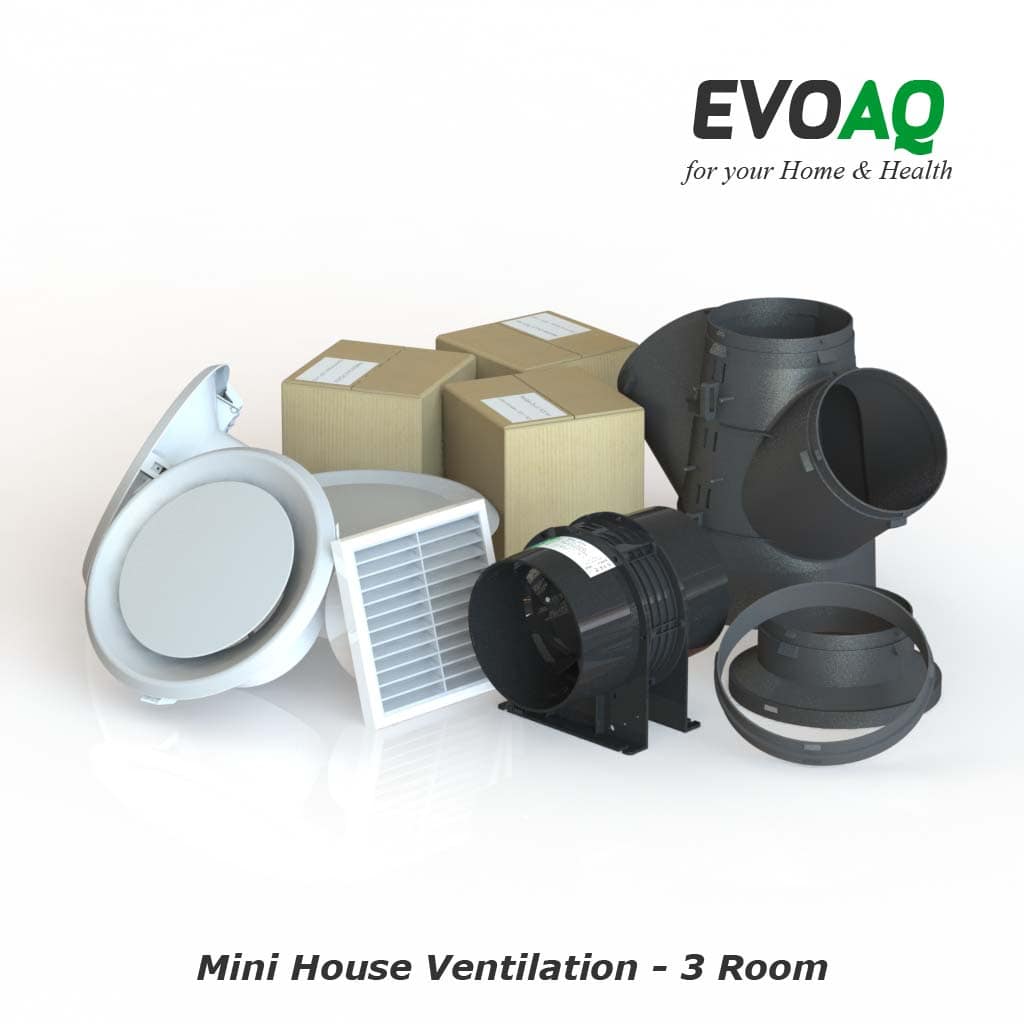

This system is designed to provide ventilation for houses under 100m² and with up to 3 outlets. It is not designed to be compatible with any filters or wall controllers.
If you require more than 3 outlets or would like to include a filter or wall controller please consider upgrading to a larger system, such as the AQ220 (EVOAQ Standard Home Ventilation – house size up to 220m²).

WeightN/A
External Grille

ABS Louvre Grille, ABS CowlIncludes back-draught shutter, Stainless Steel Cowl Includes back-draught shutter

External Grille Size150mm 150mm duct connection
Fan Motor TypeEC Motor 230VAC Electronically Commutated (EC) fan motor, with 10-100% variable speed controllability
Fan Size150mm Fan with 150mm diameter duct connection
Fan Type

Inline Fan

G4 ComplianceCompliant with G4 Building code This system is compliant with G4 Building Code ventilation requirements (as per NZS 4303:1990). This means ventilation systems are capable of delivering at least 7.5L/s per person of fresh air to living spaces; bathroom/laundry fans can provide at least 10L/s continuous and/or 25L/s intermittent extraction; and kitchen fans can provide at least 12L/s continuous and/or 50L/s intermittent extraction.
Internal Grille Size150mm large diffuser 150mm Duct connection size. Face size is 265mm; cut-out size is ~230mm.
Sensor Type

Humidity, Temperature

Speed ControlsAir Quality Monitoring Air Quality Monitoring is EVOAQ's proprietary sensor software controls, with humidity and temperature sensor control technology designed for NZ homes
