Automatic WET-AREA Thru-Wall Bathroom Fan (180mm DC)

$333.50

Kit Type *
External Grille *

White ABS plastic cowl.
Suitable for installation in walls and roof gable ends.

Stainless steel cowl. Can be painted or left as metal colour.
Suitable for installation in walls and roof gable ends.

External Grille *

White ABS plastic louvre grille.
Suitable for installation in soffits.

White ABS plastic cowl.
Suitable for installation in walls and roof gable ends.

Stainless steel cowl. Can be painted or left as metal colour.
Suitable for installation in walls and roof gable ends.

Paint Cowl?

Check the above option if you would like us to spray paint your cowl to match your house’s cladding colour.

Colour (Dulux colours preferred) *
Add-Ons
Total price:$333.50
- +

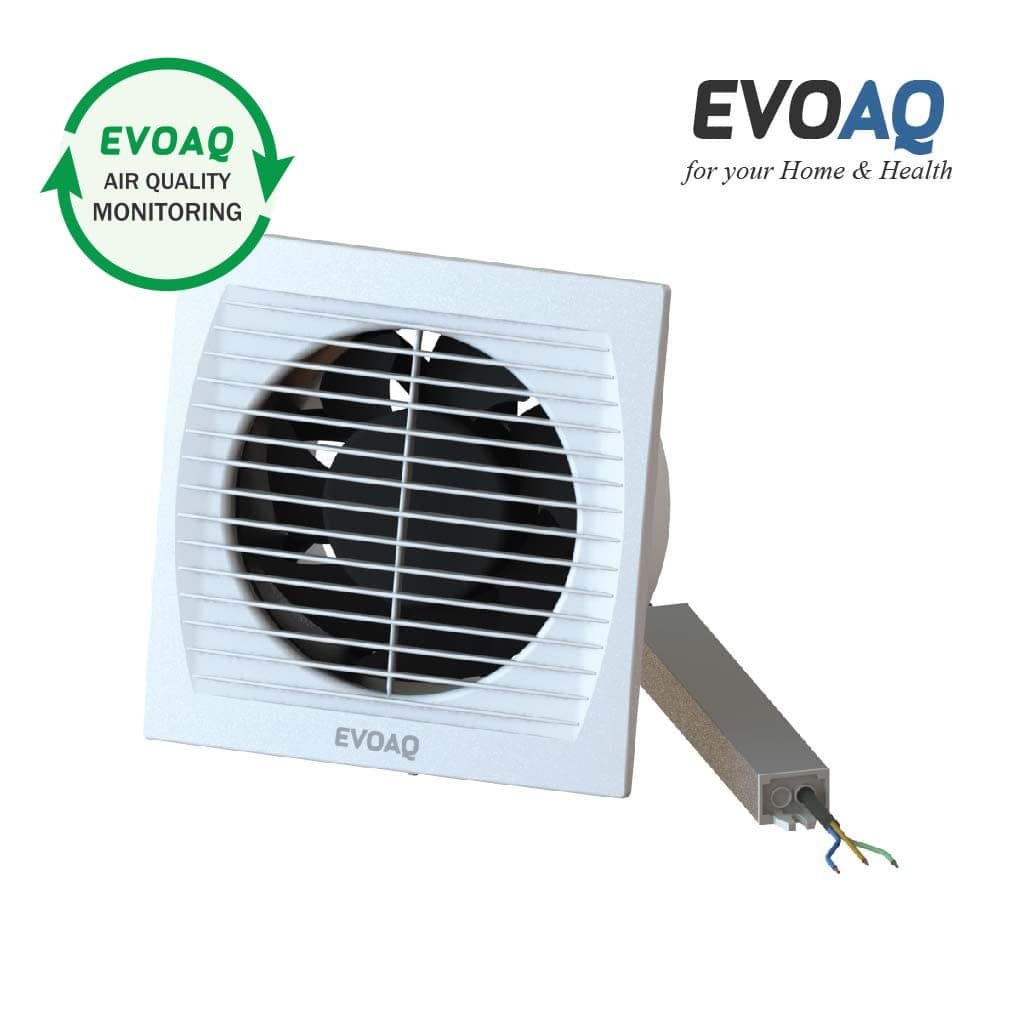

EVOAQ Automatic WET-AREA DC Through-Wall Bathroom Extraction

High-performance EVOAQ Bathroom Extraction designed for wet areas

The EVOAQ Automatic Wet-Area DC Through-Wall Bathroom Extraction Fan is designed for wet areas in bathrooms where moisture levels are high and the fan may be exposed to direct steam or splashing.  Based on the same high-airflow 180mm platform as our MAX bathroom fans, this fan adds a Wet-Area-rated DC motor design for added durability and reliability in more demanding environments.

EVOAQ Automatic WET-AREA through-wall or through-ceiling 180mm DC extraction fan (environmental control) designed for wet-area bathrooms, showers, and high-moisture spaces requiring automatic high-capacity steam extraction – up to approx. 20m² in size.

Designed for rooms that have limited to no ceiling space, this fan is installed on the wall or ceiling and remains fully accessible from the inside of the room for simple access during maintenance. Advanced internal sensor technology continuously monitor and adjust the fan speed based on humidity and temperature levels. The Wet-Area-rated DC fan is built to operate reliably in high-humidity conditions, providing fast moisture removal while maintaining quiet, energy-efficient performance. Buy today and take control of your air quality with EVOAQ!

Please note: the above price is for the fan only and does not include installation. Contact us if you are interested in a quote for installation of this fan.


Contents:

Want the fan to speed up when the lights are turned on? Add our boost switch box add-on to interface the fan with your bathroom lights.

For more extraction options to keep your house healthy, check out our extraction product ranges here!


Why Choose EVOAQ?

If you value both functionality and style, EVOAQ Automatic Bathroom Extraction is for you! Our cutting-edge sensor technology ensures your bathroom stays fresh without the need for manual adjustments, and providing you with a comfortable bathroom environment while conserving energy. Ideal for modern homes, EVOAQ Bathroom Extraction is the ultimate solution for superior bathroom environments.

Keep your bathroom fresh and comfortable with EVOAQ

For more info about EVOAQ Extraction, check out our website!

Weight1.2 kg
Dimensions27 × 22 × 16 cm
Sensor Type

Humidity, Temperature

Fan Size180mm Internal wall/ceiling cut-out for fan is 180-185mmm, duct connection is 150mm
Internal Grille Size206mm x 206mm fan grille Fan grille; square 205 x 205mm face size. Fan ducting connection is 150mm
Duct Size

150mm

Fan Motor TypeDC Motor 12V DC motor suitable for installation in wet areas, with 10-100% variable speed controllability. Comes with separate power supply for Mains Power (230VAC) connection.
Fan Type

Through-Ceiling Fan, Through-Wall Fan

G4 ComplianceCompliant with G4 Building code This system is compliant with G4 Building Code ventilation requirements (as per NZS 4303:1990). This means ventilation systems are capable of delivering at least 7.5L/s per person of fresh air to living spaces; bathroom/laundry fans can provide at least 10L/s continuous and/or 25L/s intermittent extraction; and kitchen fans can provide at least 12L/s continuous and/or 50L/s intermittent extraction.
Healthy Homes ComplianceCompliant with the NZ Healthy Homes Standards This system is compliant with the New Zealand Healthy Homes Standards. This means that for kitchens, the system has an exhaust capacity of at least 12L/s (continuous) and/or 50L/s (intermittent extraction). And for bathrooms, the system has an exhaust capacity of at least 10L/s (continuous) and/or 25L/s (intermittent extraction).
Internal Grille

Fan Fascia

Speed ControlsAir Quality Monitoring Air Quality Monitoring is EVOAQ's proprietary sensor software controls, with humidity and temperature sensor control technology designed for NZ homes
